A1015 Datasheet PDF — Unisonic Technologies
| Part Number | A1015 | |
| Description | 150mA,50V, PNP TRANSISTOR, 2SA1015 | |
| Manufacturers | Unisonic Technologies | |
| Logo | ||
|
The A1015 transistor has a maximum current rating of 150mA, which means that it can handle up to 150 milliamperes of current flowing through it. Some applications: 1. Amplification: Small signal amplifier in audio and radio frequency circuits. 2. Switching: Switch in electronic circuits, such as in relay and motor control circuits. 3. Oscillators: Oscillator circuits to generate high-frequency signals. There is a preview and A1015 download ( pdf file ) link at the bottom of this page. Total 2 Pages |
|

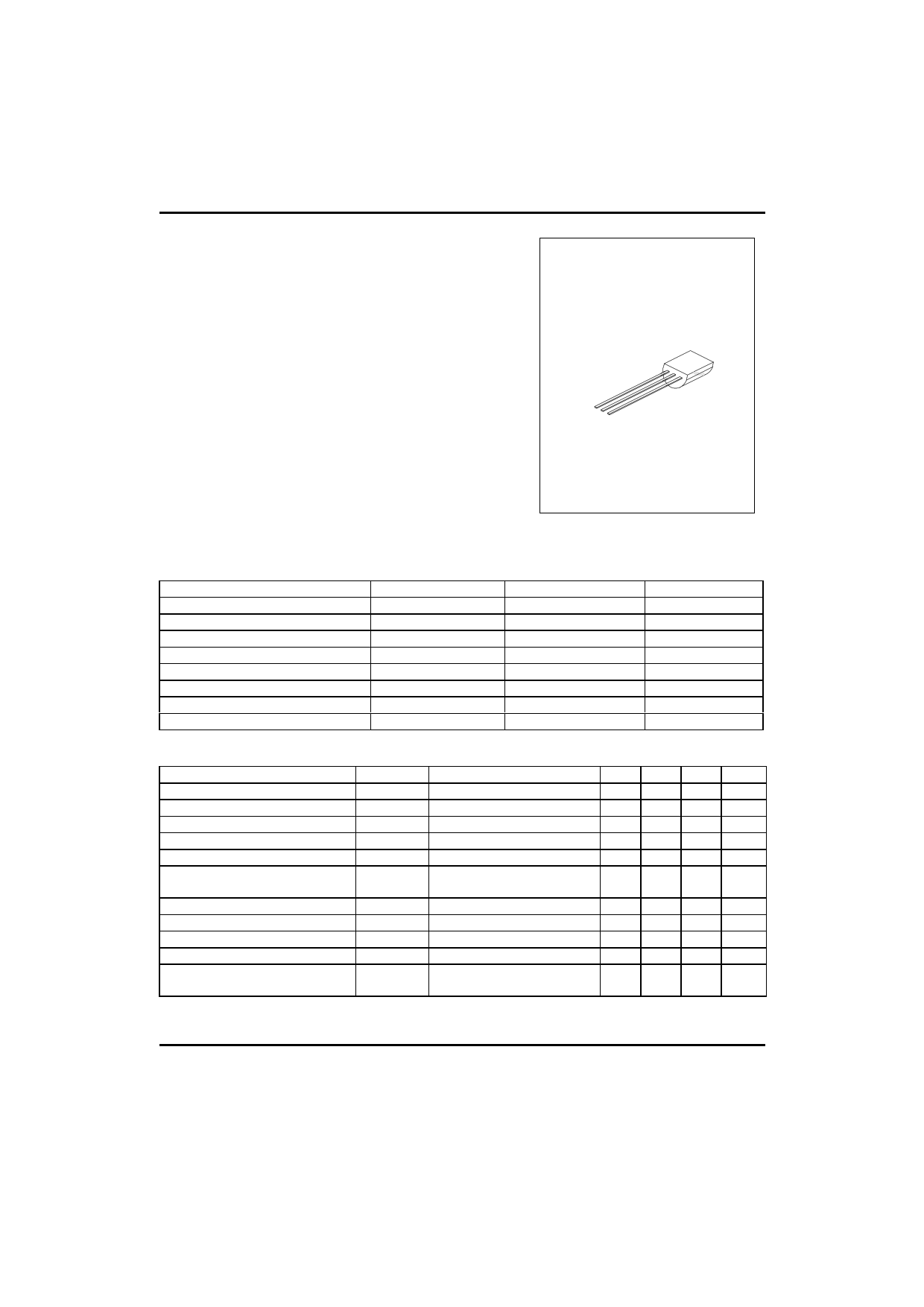

Preview 1 page
No Preview Available !

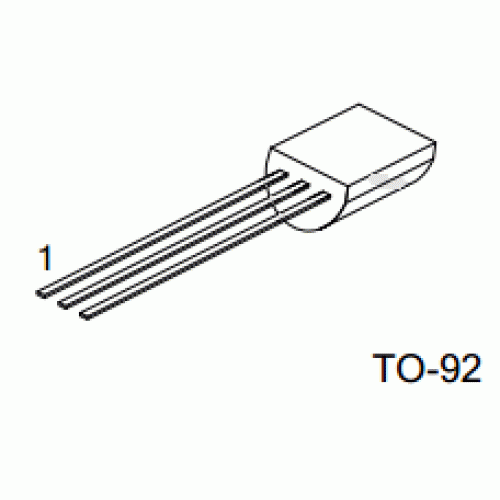

UTC2SA1015 PNP EPITAXIAL SILICON TRANSISTOR BVCEO=-50V *Collector current up to 150mA ABSOLUTE MAXIMUM RATINGS ( Ta=25°C ,unless otherwise specified ) PARAMETER VCBO -50 VCEO -50 VEBO -5 IB -50 Junction Temperature Tj 125 Storage Temperature TSTG -65 ~ +150 °C °C ELECTRICAL CHARACTERISTICS(Ta=25°C,unless otherwise specified) PARAMETER Collector-base breakdown voltage BVCBO Ic=-100µA,IE=0 -50 Collector-emitter breakdown voltage BVCEO Ic=-10mA,IB=0 -50 BVEBO IE=-10µA,Ic=0 -5 ICBO VCB=-50V,IE=0 Emitter cut-off current IEBO VEB=-5V,Ic=0 DC current gain(note) hFE1 VCE=-6V,Ic=-2mA 70 hFE2 VCE=-6V,Ic=-150mA 25 Collector-emitter saturation voltage VCE(sat) Ic=-100mA,IB=-10mA Base-emitter saturation voltage VBE(sat) Ic=-100mA,IB=-10mA Current gain bandwidth product fT VCE=-10V,Ic=-1mA 80 Cob VCB=-10V,IE=0,f=1MHz Noise Figure NF Ic=-0.1mA,VCE=-6V RG=1kΩ,f=100Hz TYP UTC UNISONIC TECHNOLOGIES CO. LTD 1 |
|
On this page, you can learn information such as the schematic, equivalent, pinout, replacement, circuit, and manual for A1015 electronic component. |
| Information | Total 2 Pages |
| Link URL | |

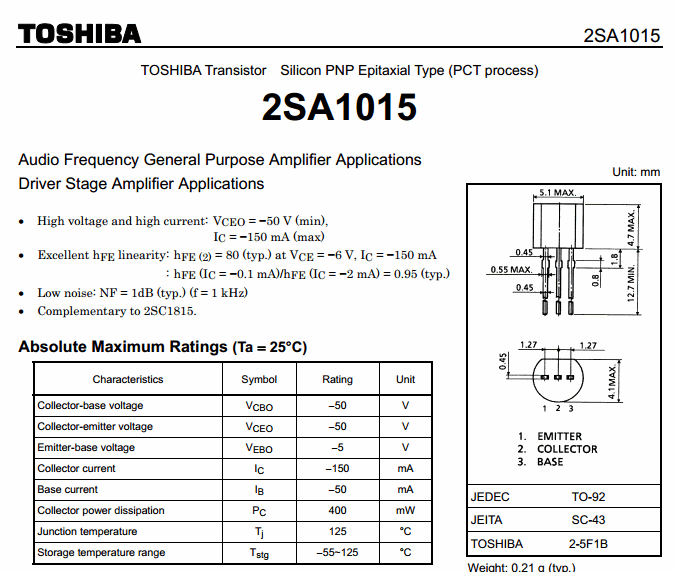

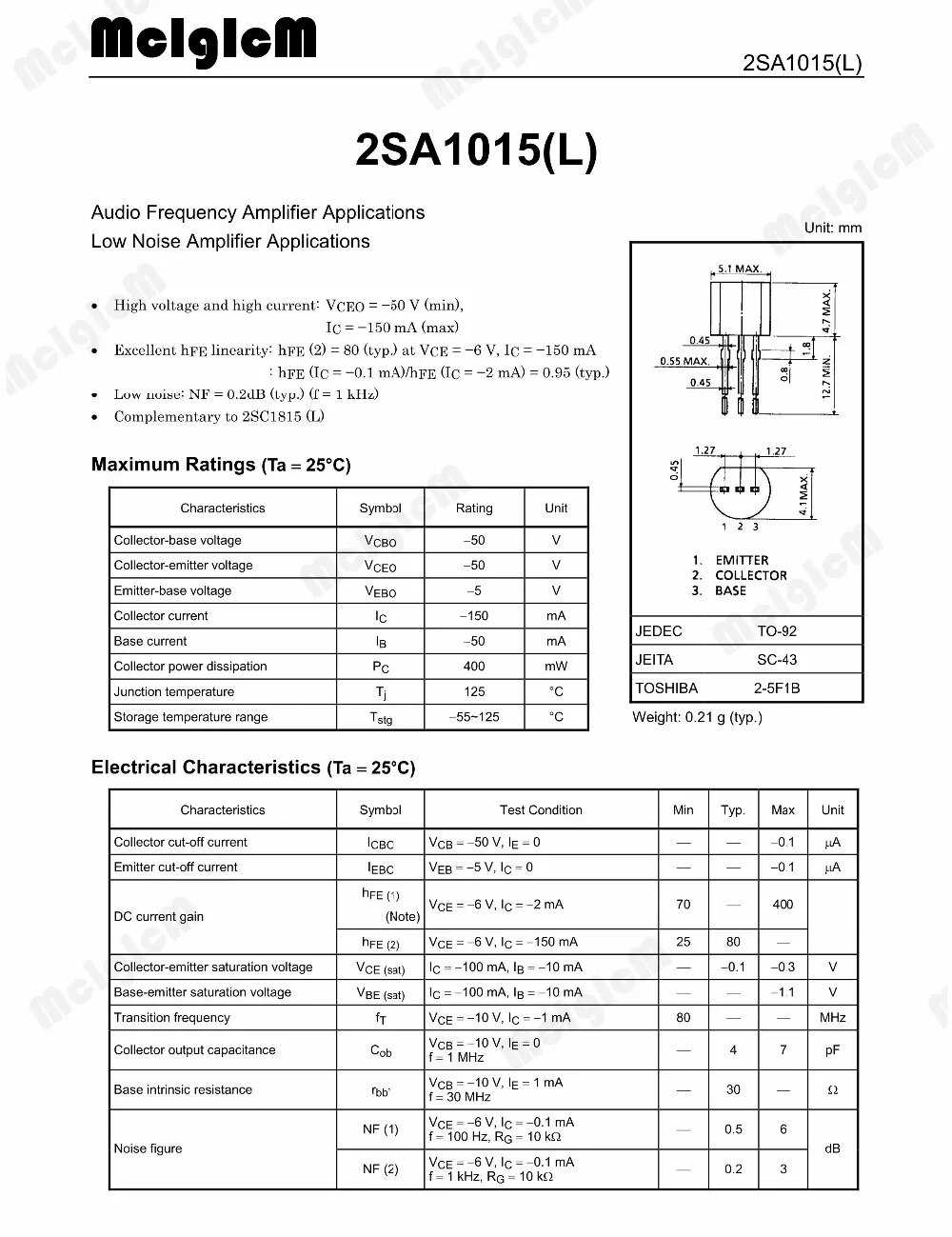

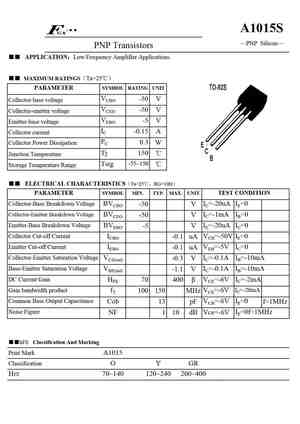

| Product Image and Detail view | 1. 150mA, PNP Transistor — Toshiba |
| Download |
