2N4403 transistor electrical specification description
In this description we explain the electrical specifications of the 2n4403 transistor, this also leads to explaining some of the applications of the 2n4403 transistor.
Voltage specs
The voltage specs of 2n4403 are collector to emitter and collector to base voltage is 40V and emitter to base voltage is 5V, it is the voltage value mostly had for a general-purpose transistor device.
Collector to emitter saturation voltage is 0.4 to 0.75v
Dissipation specs
The dissipation of a 2n4403 transistor device is 625Mw, this is the power dissipation value for a general-purpose transistor.
Current gain specs
The current gain value is very important for a transistor in many applications, 20 to 300Hfe.
Small signal DC current gain value is 60 to 500hFE
Current gain-bandwidth transition frequency
The bandwidth transition frequency value of the 2N4403 transistor is 200MHz, it is the frequency range of the transistor.
2N4403 vs 2N3906 vs 2N2907
In the table, we try to compare the electrical specifications of each transistor such as 2N4403, 2N3906, and 2N2907.
| Characteristics | 2N4403 | 2N3906 | 2N2907 |
|---|---|---|---|
| Collector to base voltage (VCB) | 40V | 40V | 60V |
| Collector to emitter voltage (VCE) | 40V | 40V | 60V |
| Emitter to base voltage (VEB) | 5V | 5V | 5V |
| Collector to emitter saturation voltage (VCE (SAT)) | 0.4V to 0.75V | 0.25V to 0.4V | -0.4V to-1.6V |
| Collector current (IC) | 600mA | 200mA | 600mA |
| Power dissipation | 625mW | 625mW | 625mW |
| Junction temperature (TJ) | -55 to +150°C | -55 to +150°C | -55 to +150°C |
| Transition frequency (FT) | 200MHZ | 250MHZ | 200MHZ |
| Gain (hFE) | 20 to 300hFE | 30 to 300hFE | 50 to 300hFE |
| Noise figure (NF) | — | 4dB | — |
| Rise time (tr) | 20ns | 35ns | 40ns |
| Package | TO-92 | TO-92 | TO-92 |
The voltage specs of each transistor are identical and apt for a general-purpose application.
The rest of the electrical specifications of 2n4403, 2n3906, and 2n2907 transistor is the same, so we can use these transistors as the replacement for 2n4403.
In Stock: 92630
United States
China
Canada
Japan
Russia
Germany
United Kingdom
Singapore
Italy
Hong Kong(China)
Taiwan(China)
France
Korea
Mexico
Netherlands
Malaysia
Austria
Spain
Switzerland
Poland
Thailand
Vietnam
India
United Arab Emirates
Afghanistan
Åland Islands
Albania
Algeria
American Samoa
Andorra
Angola
Anguilla
Antigua & Barbuda
Argentina
Armenia
Aruba
Australia
Azerbaijan
Bahamas
Bahrain
Bangladesh
Barbados
Belarus
Belgium
Belize
Benin
Bermuda
Bhutan
Bolivia
Bonaire, Sint Eustatius and Saba
Bosnia & Herzegovina
Botswana
Brazil
British Indian Ocean Territory
British Virgin Islands
Brunei
Bulgaria
Burkina Faso
Burundi
Cabo Verde
Cambodia
Cameroon
Cayman Islands
Central African Republic
Chad
Chile
Christmas Island
Cocos (Keeling) Islands
Colombia
Comoros
Congo
Congo (DRC)
Cook Islands
Costa Rica
Côte d’Ivoire
Croatia
Cuba
Curaçao
Cyprus
Czechia
Denmark
Djibouti
Dominica
Dominican Republic
Ecuador
Egypt
El Salvador
Equatorial Guinea
Eritrea
Estonia
Eswatini
Ethiopia
Falkland Islands
Faroe Islands
Fiji
Finland
French Guiana
French Polynesia
Gabon
Gambia
Georgia
Ghana
Gibraltar
Greece
Greenland
Grenada
Guadeloupe
Guam
Guatemala
Guernsey
Guinea
Guinea-Bissau
Guyana
Haiti
Honduras
Hungary
Iceland
Indonesia
Iran
Iraq
Ireland
Isle of Man
Israel
Jamaica
Jersey
Jordan
Kazakhstan
Kenya
Kiribati
Kosovo
Kuwait
Kyrgyzstan
Laos
Latvia
Lebanon
Lesotho
Liberia
Libya
Liechtenstein
Lithuania
Luxembourg
Macao(China)
Madagascar
Malawi
Maldives
Mali
Malta
Marshall Islands
Martinique
Mauritania
Mauritius
Mayotte
Micronesia
Moldova
Monaco
Mongolia
Montenegro
Montserrat
Morocco
Mozambique
Myanmar
Namibia
Nauru
Nepal
New Caledonia
New Zealand
Nicaragua
Niger
Nigeria
Niue
Norfolk Island
North Korea
North Macedonia
Northern Mariana Islands
Norway
Oman
Pakistan
Palau
Palestinian Authority
Panama
Papua New Guinea
Paraguay
Peru
Philippines
Pitcairn Islands
Portugal
Puerto Rico
Qatar
Réunion
Romania
Rwanda
Samoa
San Marino
São Tomé & Príncipe
Saudi Arabia
Senegal
Serbia
Seychelles
Sierra Leone
Sint Maarten
Slovakia
Slovenia
Solomon Islands
Somalia
South Africa
South Sudan
Sri Lanka
St Helena, Ascension, Tristan da Cunha
St. Barthélemy
St. Kitts & Nevis
St. Lucia
St. Martin
St. Pierre & Miquelon
St. Vincent & Grenadines
Sudan
Suriname
Svalbard & Jan Mayen
Sweden
Syria
Tajikistan
Tanzania
Timor-Leste
Togo
Tokelau
Tonga
Trinidad & Tobago
Tunisia
Turkey
Turkmenistan
Turks & Caicos Islands
Tuvalu
U.S. Outlying Islands
U.S. Virgin Islands
Uganda
Ukraine
Uruguay
Uzbekistan
Vanuatu
Vatican City
Venezuela
Wallis & Futuna
Yemen
Zambia
Zimbabwe
Quantity
Quick RFQ
Описание транзистора 2N4403

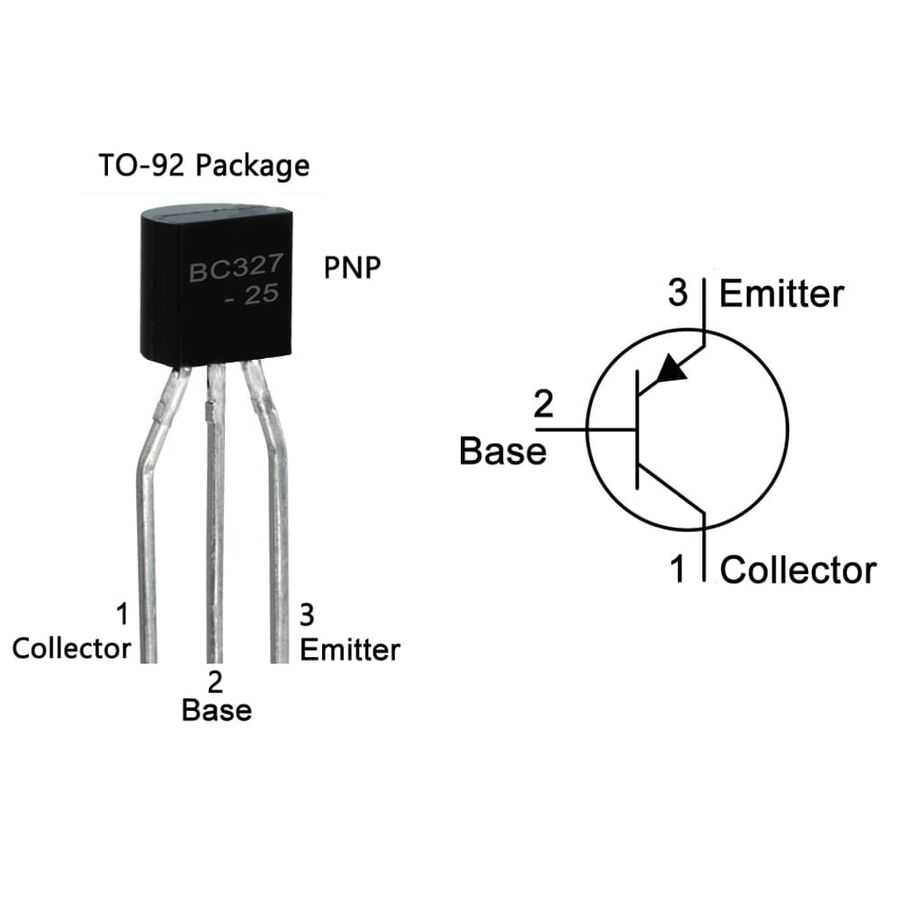

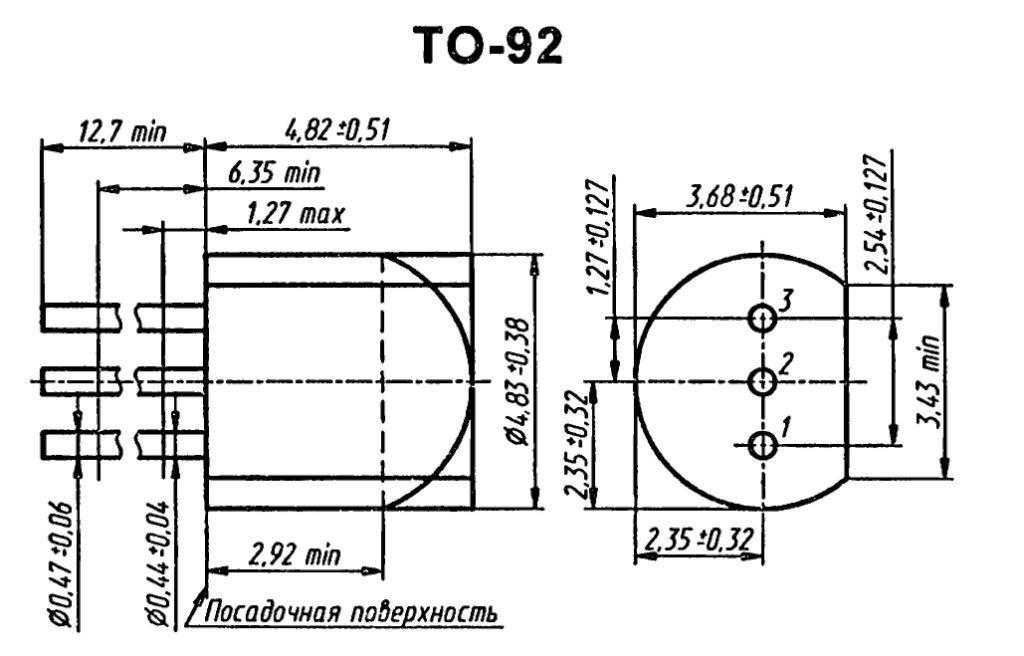

Транзистор 2N4403 — биполярный, кремниевый, высокочастотный (30 МГц > FГР < 300 МГц) транзистор типа P-N-P, средней мощности (300 мВт > PК,МАКС < 1,5 Вт). Тип корпуса TO-92. Аналоги данного транзистора это транзисторы: NTE159, SK3466, BC327, BSS80C, PN200, THC4403, TMPT4403, 2N2907, 2N4143*, 2N4972*, 2N6001*, 2N6003*, 2N6005*, 2N6007*, 2N6011*, 2N6013*, 2N6015* A5T2907*, A5T4403*.
Транзистор
UКЭ0 /UКБ0 ПРОБВ
IК, МАКСмА
PК, МАКСмВт
h21Э
fгрМГц
Изготовитель
мин.
макс.
IКмА
UКЭВ
Название (полное)
Название (сокращённое)
2N4403
40/40
600
350
100
150
10
200
American Microsemiconductor Inc
AmerMicroSC
Advanced Semiconductor tnc
Advncd Semi
Allegro Microsystems Inc
AlegroMicro
Central Semiconductor Corp
CentralSemi
Continental Device India Ltd
Contin Dev
Crimson Semiconductor Inc
CrimsonSimi
Diodes Inc
Diodes Inc
Elm State Electronics lnc
Elm State
Hi-Tron Semiconductor
Hi-Tron
Toshiba Corp/Industria Mexicana Toshiba SA
KSL Microdevices Ing
KSL Micro
Micro Electronics Ltd
Micro Еlecs
Microsemi Corp
Microsemi
Mistral SPA
Mistral SpA
Motorola Semiconductor Products Inc
Motorola
NAS Etektronische Halbleiter Gmbh
NAS Elekt
National Semiconductor Corp
Natl Semi
Rochester Electronics Inc
Rochester
Rohm Со Ltd
Rohm Со Ltd
Samsung Electronics Inc
Samsung
Semelab Plc
Semelab
Semiconductors Inc
Semi Inc
Semiconductor Technology Inc
SemiconTech
Intex Со Inc/Semitronics Corp
Semitronics
Solid State Inc
Solid Stinc
Swampscott Electronics Со Inc
Swampscott
Toshiba America Electronic Components Inc
ToshibaAmer
Transistor Со
Transistor
United-Page Inc, UPI Semiconductor Division
UPI Semi
Space Power Electronics Inc
Space Power

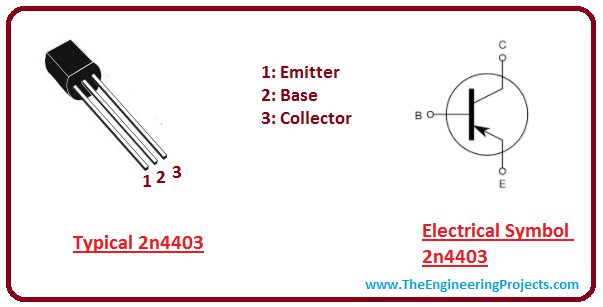

Цоколёвка
Тип
Номера выводов
1
2
3
3 вывода
E
B
C
UКЭ0, ПРОБ — пробивное напряжение коллектор-эмиттер биполярного транзистора при токе базы, равном нулю.
UКБ0, ПРОБ — пробивное напряжение коллектор-база биполярного транзистора.
UКЭ — напряжение источника питания коллектора биполярного транзистора при измерении h21Э.
IК, МАКС — максимально допустимый постоянный ток коллектора биполярного транзистора.
IК — постоянный ток коллектора биполярного транзистора при измерении h21Э.
h21Э — статический коэффициент передачи тока биполярного транзистора в схеме с общим эмиттером.
fГР — граничная частота коэффициента передачи тока в схеме с общим эмиттером.
PК, МАКС — максимально допустимая постоянная рассеиваемая мощность коллектора биполярного транзистора.
* — Транзистор не является полным аналогом, но возможна замена.
2N4403 transistor characteristics

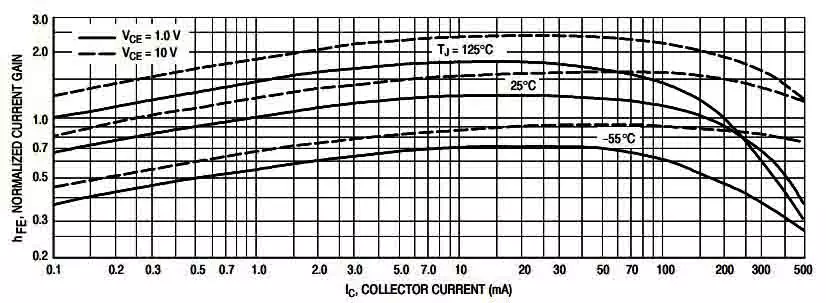

DC current gain characteristics of the 2N4403 transistor
The figure shows the DC current gain characteristics of the 2N4403 transistor, the graph is plotted with normalized current gain vs collector current.
For the reference, a fixed collector to emitter voltage is taken, such as a low value and a higher value.
At a lower voltage value, the temperature rises and the gain value reaches the higher limit and slightly drops at the end.
collector to emitter saturation voltage characteristics of the 2n4403 transistor
The figure shows the collector to emitter saturation voltage characteristics of the 2n4403 transistor, the graph is plotted with the collector to emitter voltage vs base current.
