What is irf3415?

IRF3415 Datasheet PDF — International Rectifier

Part Number	IRF3415
Description	Power MOSFET(Vdss=150V/ Rds(on)=0.042ohm/ Id=43A)
Manufacturers	International Rectifier
Logo
There is a preview and IRF3415 download ( pdf file ) link at the bottom of this page. Total 8 Pages

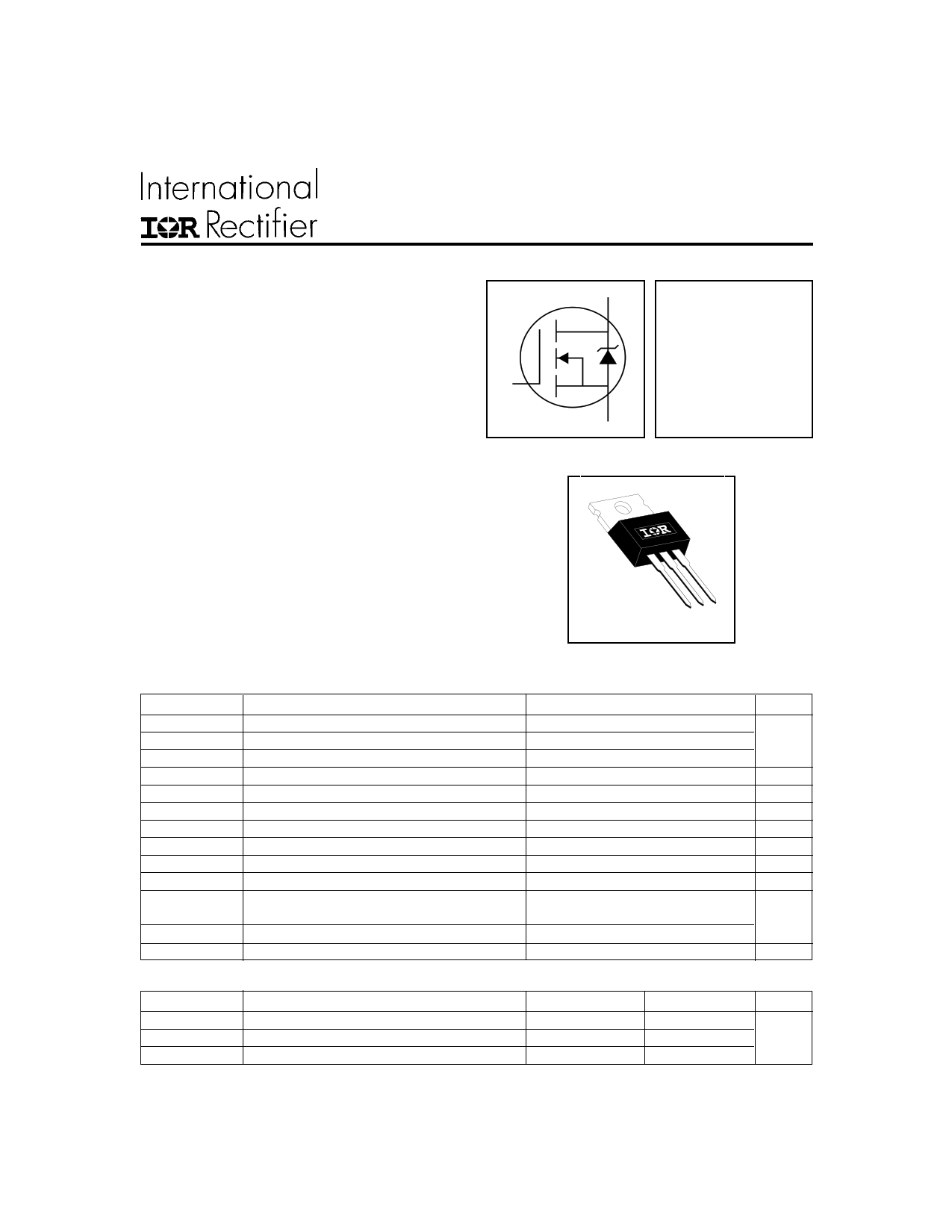

Preview 1 page No Preview Available ! l Advanced Process Technology l Dynamic dv/dt Rating l 175°C Operating Temperature l Fast Switching l Fully Avalanche Rated Description Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications. The TO-220 package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 watts. The low thermal resistance and low package cost of the TO-220 contribute to its wide acceptance throughout the industry. Absolute Maximum Ratings ID @ TC = 25°C ID @ TC = 100°C IDM PD @TC = 25°C VGS EAS IAR EAR dv/dt TJ TSTG Parameter Continuous Drain Current, VGS @ 10V Continuous Drain Current, VGS @ 10V Pulsed Drain Current Power Dissipation Linear Derating Factor Gate-to-Source Voltage Single Pulse Avalanche Energy Avalanche Current Repetitive Avalanche Energy Peak Diode Recovery dv/dt Operating Junction and Storage Temperature Range Soldering Temperature, for 10 seconds Mounting torque, 6-32 or M3 srew Thermal Resistance RθJC RθCS RθJA Parameter Junction-to-Case Case-to-Sink, Flat, Greased Surface Junction-to-Ambient G PD — 91477D IRF3415 HEXFETPower MOSFET D VDSS = 150V RDS(on) = 0.042Ω ID = 43A S TO-220AB Max. 43 30 150 200 1.3 ± 20 590 22 20 5.0 -55 to + 175 300 (1.6mm from case ) 10 lbf•in (1.1N•m) Typ. ––– 0.50 ––– Max. 0.75 ––– 62 Units A W W/°C V mJ A mJ V/ns °C Units °C/W 5/13/98

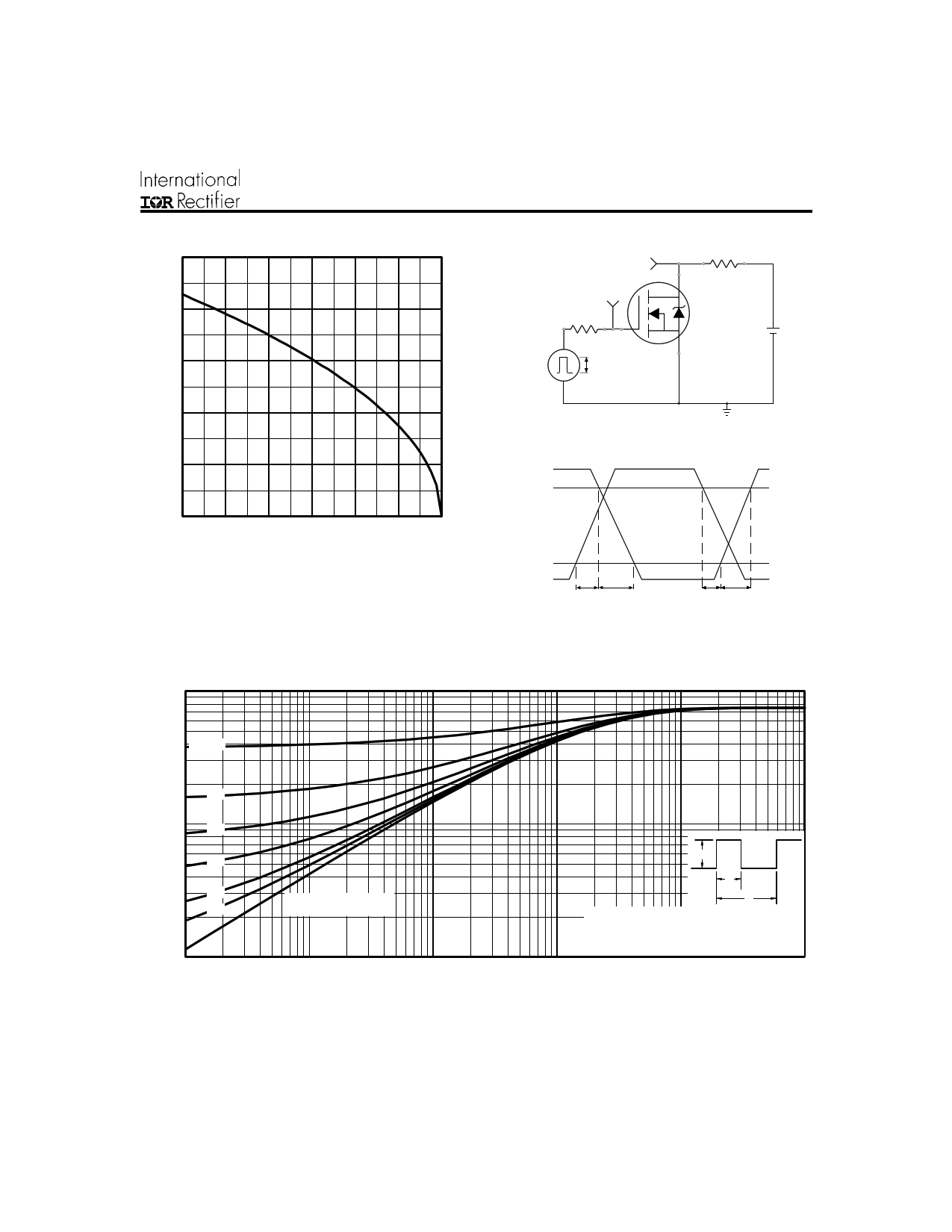

IRF3415 50 40 30 20 10 25 50 75 100 125 150 175 TC , Case Temperature ( °C) Fig 9. Maximum Drain Current Vs. Case Temperature VDS VGS RG RD D.U.T. 10V Pulse Width ≤ 1 µs Duty Factor ≤ 0.1 % +-VDD Fig 10a. Switching Time Test Circuit VDS 90% 10% VGS td(on) tr td(off) tf Fig 10b. Switching Time Waveforms 1 D = 0.50 0.20 0.1 0.10 0.05 0.02 0.01 0.01 0.00001 PDM t1 SINGLE PULSE (THERMAL RESPONSE) t2 Notes: 1. Duty factor D = t1 / t 2 2. Peak T J = P DM x Z thJC + TC 0.0001 0.001 0.01 t1 , Rectangular Pulse Duration (sec) 0.1 Fig 11. Maximum Effective Transient Thermal Impedance, Junction-to-Case 1 Preview 5 Page

On this page, you can learn information such as the schematic, equivalent, pinout, replacement, circuit, and manual for IRF3415 electronic component.

Information	Total 8 Pages
Link URL
Download

Share Link :

Electronic Components Distributor

An electronic components distributor is a company that sources, stocks, and sells electronic components to manufacturers, engineers, and hobbyists.

SparkFun Electronics	Allied Electronics	DigiKey Electronics	Arrow Electronics
Mouser Electronics	Adafruit	Newark	Chip One Stop

IRF3415 Datasheet (PDF)

 ..1. Size:94K  international rectifier irf3415.pdf

PD — 91477DIRF3415HEXFET Power MOSFET Advanced Process TechnologyD Dynamic dv/dt RatingVDSS = 150V 175C Operating Temperature Fast SwitchingRDS(on) = 0.042 Fully Avalanche RatedGDescription ID = 43ASFifth Generation HEXFETs from International Rectifierutilize advanced processing techniques to achieveextremely low on-resistance per silicon area. Thisbenef

 ..2. Size:203K  international rectifier irf3415pbf.pdf

IRF3415PbF l Advanced Process Technologyl Dynamic dv/dt RatingDl 175C Operating Temperature l Fast Switchingl Fully Avalanche Rated l Lead-Free GDescription S

 ..3. Size:203K  infineon irf3415pbf.pdf

IRF3415PbF l Advanced Process Technologyl Dynamic dv/dt RatingDl 175C Operating Temperature l Fast Switchingl Fully Avalanche Rated l Lead-Free GDescription S

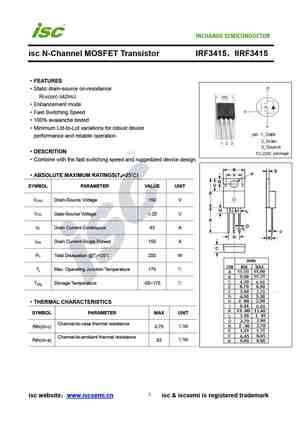

 ..4. Size:244K  inchange semiconductor irf3415.pdf

isc N-Channel MOSFET Transistor IRF3415IIRF3415FEATURESStatic drain-source on-resistance:RDS(on) 42mEnhancement modeFast Switching Speed100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationDESCRITIONCombine with the fast switching speed and ruggedized device designABSOLUTE MAXIMUM RATINGS(T =25)

 0.1. Size:236K  international rectifier auirf3415.pdf

PD — 97625AUTOMOTIVE GRADEAUIRF3415FeaturesHEXFET Power MOSFETl Advanced Planar Technologyl Low On-ResistanceDV(BR)DSS150Vl Dynamic dv/dt Ratingl 175C Operating TemperatureRDS(on) max.0.042l Fast SwitchingGl Fully Avalanche RatedID43ASl Repetitive Avalanche Allowed up toTjmaxl Lead-Free, RoHS CompliantDl Automotive Qualified*SDescriptio

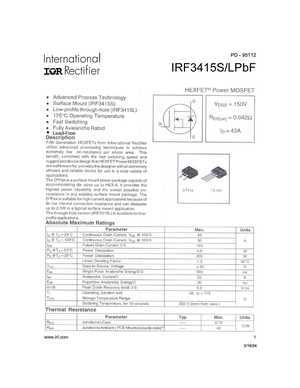

 0.2. Size:1066K  international rectifier irf3415spbf irf3415lpbf.pdf

PD — 95112IRF3415S/LPbF Lead-Freewww.irf.com 13/16/04IRF3415S/LPbF2 www.irf.comIRF3415S/LPbFwww.irf.com 3IRF3415S/LPbF4 www.irf.comIRF3415S/LPbFwww.irf.com 5IRF3415S/LPbF6 www.irf.comIRF3415S/LPbFwww.irf.com 7IRF3415S/LPbFD2Pak Package OutlineDimensions are shown in millimeters (inches)D2Pak Part Marking Information (Lead-Free) I I I I I I

 0.3. Size:156K  international rectifier irf3415s.pdf

PD — 91509CIRF3415S/LHEXFET Power MOSFET Advanced Process TechnologyDVDSS = 150V Surface Mount (IRF3415S) Low-profile through-hole (IRF3415L) 175C Operating TemperatureRDS(on) = 0.042 Fast SwitchingG Fully Avalanche RatedID = 43ASDescriptionFifth Generation HEXFETs from International Rectifierutilize advanced processing techniques to achieveextremely l

 0.4. Size:1066K  infineon irf3415spbf irf3415lpbf.pdf

PD — 95112IRF3415S/LPbF Lead-Freewww.irf.com 13/16/04IRF3415S/LPbF2 www.irf.comIRF3415S/LPbFwww.irf.com 3IRF3415S/LPbF4 www.irf.comIRF3415S/LPbFwww.irf.com 5IRF3415S/LPbF6 www.irf.comIRF3415S/LPbFwww.irf.com 7IRF3415S/LPbFD2Pak Package OutlineDimensions are shown in millimeters (inches)D2Pak Part Marking Information (Lead-Free) I I I I I I

 0.5. Size:257K  inchange semiconductor irf3415s.pdf

Isc N-Channel MOSFET Transistor IRF3415SFEATURESWith To-263(D2PAK) packageLow input capacitance and gate chargeLow gate input resistance100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationAPPLICATIONSSwitching applicationsABSOLUTE MAXIMUM RATINGS(T =25)aSYMBOL PARAMETER VALUE UNITV Drain-Source Volt

 0.6. Size:255K  inchange semiconductor irf3415l.pdf

Isc N-Channel MOSFET Transistor IRF3415LFEATURESWith To-262 packageLow input capacitance and gate chargeLow gate input resistance100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationAPPLICATIONSSwitching applicationsABSOLUTE MAXIMUM RATINGS(T =25)aSYMBOL PARAMETER VALUE UNITV Drain-Source Voltage 150

IRF3415 MOSFET — описание производителя. Даташиты. Основные параметры и характеристики. Поиск аналога. Справочник

Наименование прибора: IRF3415

Тип транзистора: MOSFET

Полярность: N

Максимальная рассеиваемая мощность (Pd): 200
W

Предельно допустимое напряжение сток-исток |Uds|: 150
V

Предельно допустимое напряжение затвор-исток |Ugs|: 20
V

Пороговое напряжение включения |Ugs(th)|: 4
V

Максимально допустимый постоянный ток стока |Id|: 43
A

Максимальная температура канала (Tj): 175
°C

Общий заряд затвора (Qg): 200(max)
nC

Время нарастания (tr): 55
ns

Выходная емкость (Cd): 640
pf

Сопротивление сток-исток открытого транзистора (Rds): 0.042
Ohm

Тип корпуса:

IRF3415
Datasheet (PDF)

 ..1. Size:94K  international rectifier irf3415.pdf

PD — 91477DIRF3415HEXFET Power MOSFET Advanced Process TechnologyD Dynamic dv/dt RatingVDSS = 150V 175C Operating Temperature Fast SwitchingRDS(on) = 0.042 Fully Avalanche RatedGDescription ID = 43ASFifth Generation HEXFETs from International Rectifierutilize advanced processing techniques to achieveextremely low on-resistance per silicon area. Thisbenef

 ..2. Size:203K  international rectifier irf3415pbf.pdf

IRF3415PbF l Advanced Process Technologyl Dynamic dv/dt RatingDl 175C Operating Temperature l Fast Switchingl Fully Avalanche Rated l Lead-Free GDescription S

 ..3. Size:203K  infineon irf3415pbf.pdf

IRF3415PbF l Advanced Process Technologyl Dynamic dv/dt RatingDl 175C Operating Temperature l Fast Switchingl Fully Avalanche Rated l Lead-Free GDescription S

 ..4. Size:244K  inchange semiconductor irf3415.pdf

isc N-Channel MOSFET Transistor IRF3415IIRF3415FEATURESStatic drain-source on-resistance:RDS(on) 42mEnhancement modeFast Switching Speed100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationDESCRITIONCombine with the fast switching speed and ruggedized device designABSOLUTE MAXIMUM RATINGS(T =25)

 0.1. Size:236K  international rectifier auirf3415.pdf

PD — 97625AUTOMOTIVE GRADEAUIRF3415FeaturesHEXFET Power MOSFETl Advanced Planar Technologyl Low On-ResistanceDV(BR)DSS150Vl Dynamic dv/dt Ratingl 175C Operating TemperatureRDS(on) max.0.042l Fast SwitchingGl Fully Avalanche RatedID43ASl Repetitive Avalanche Allowed up toTjmaxl Lead-Free, RoHS CompliantDl Automotive Qualified*SDescriptio

 0.2. Size:1066K  international rectifier irf3415spbf irf3415lpbf.pdf

PD — 95112IRF3415S/LPbF Lead-Freewww.irf.com 13/16/04IRF3415S/LPbF2 www.irf.comIRF3415S/LPbFwww.irf.com 3IRF3415S/LPbF4 www.irf.comIRF3415S/LPbFwww.irf.com 5IRF3415S/LPbF6 www.irf.comIRF3415S/LPbFwww.irf.com 7IRF3415S/LPbFD2Pak Package OutlineDimensions are shown in millimeters (inches)D2Pak Part Marking Information (Lead-Free) I I I I I I

 0.3. Size:156K  international rectifier irf3415s.pdf

PD — 91509CIRF3415S/LHEXFET Power MOSFET Advanced Process TechnologyDVDSS = 150V Surface Mount (IRF3415S) Low-profile through-hole (IRF3415L) 175C Operating TemperatureRDS(on) = 0.042 Fast SwitchingG Fully Avalanche RatedID = 43ASDescriptionFifth Generation HEXFETs from International Rectifierutilize advanced processing techniques to achieveextremely l

 0.4. Size:1066K  infineon irf3415spbf irf3415lpbf.pdf

PD — 95112IRF3415S/LPbF Lead-Freewww.irf.com 13/16/04IRF3415S/LPbF2 www.irf.comIRF3415S/LPbFwww.irf.com 3IRF3415S/LPbF4 www.irf.comIRF3415S/LPbFwww.irf.com 5IRF3415S/LPbF6 www.irf.comIRF3415S/LPbFwww.irf.com 7IRF3415S/LPbFD2Pak Package OutlineDimensions are shown in millimeters (inches)D2Pak Part Marking Information (Lead-Free) I I I I I I

 0.5. Size:257K  inchange semiconductor irf3415s.pdf

Isc N-Channel MOSFET Transistor IRF3415SFEATURESWith To-263(D2PAK) packageLow input capacitance and gate chargeLow gate input resistance100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationAPPLICATIONSSwitching applicationsABSOLUTE MAXIMUM RATINGS(T =25)aSYMBOL PARAMETER VALUE UNITV Drain-Source Volt

 0.6. Size:255K  inchange semiconductor irf3415l.pdf

Isc N-Channel MOSFET Transistor IRF3415LFEATURESWith To-262 packageLow input capacitance and gate chargeLow gate input resistance100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationAPPLICATIONSSwitching applicationsABSOLUTE MAXIMUM RATINGS(T =25)aSYMBOL PARAMETER VALUE UNITV Drain-Source Voltage 150
