IRF1010N MOSFET — описание производителя. Даташиты. Основные параметры и характеристики. Поиск аналога. Справочник

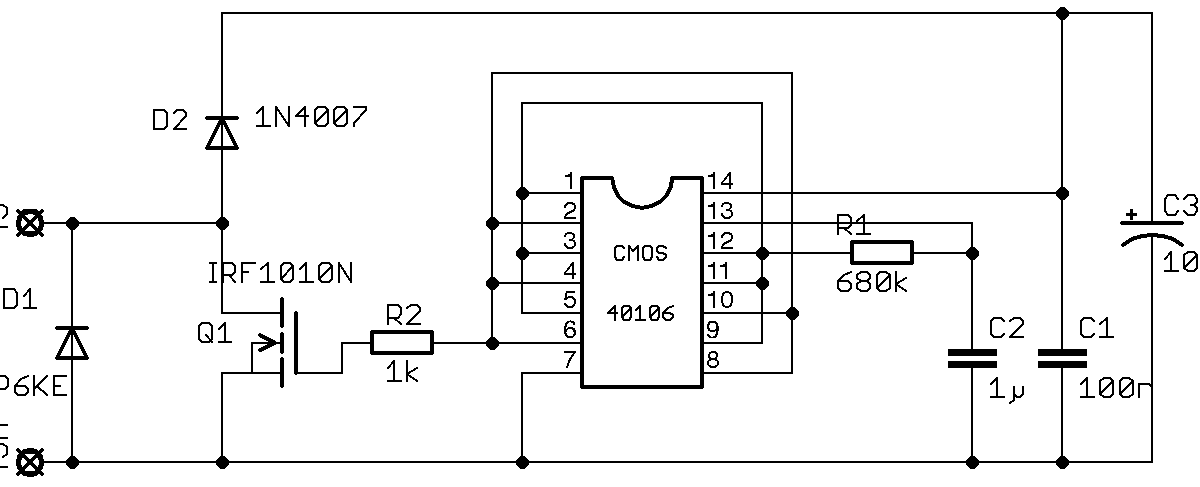

Наименование прибора: IRF1010N
Тип транзистора: MOSFET
Полярность: N
Максимальная рассеиваемая мощность (Pd): 180
W
Предельно допустимое напряжение сток-исток |Uds|: 55
V
Предельно допустимое напряжение затвор-исток |Ugs|: 20
V
Пороговое напряжение включения |Ugs(th)|: 4
V
Максимально допустимый постоянный ток стока |Id|: 85
A
Максимальная температура канала (Tj): 175
°C
Общий заряд затвора (Qg): 120(max)
nC
Время нарастания (tr): 76
ns
Выходная емкость (Cd): 690
pf
Сопротивление сток-исток открытого транзистора (Rds): 0.011
Ohm
Тип корпуса:
IRF1010N
Datasheet (PDF)
..1. Size:225K international rectifier irf1010npbf.pdf
PD — 94966AIRF1010NPbFHEXFET Power MOSFETl Advanced Process TechnologyDl Ultra Low On-ResistanceVDSS = 55Vl Dynamic dv/dt Ratingl 175C Operating TemperatureRDS(on) = 11ml Fast SwitchingGl Fully Avalanche RatedID = 85Al Lead-FreeSDescriptionAdvanced HEXFET Power MOSFETs from InternationalRectifier utilize advanced processing techniques toachieve

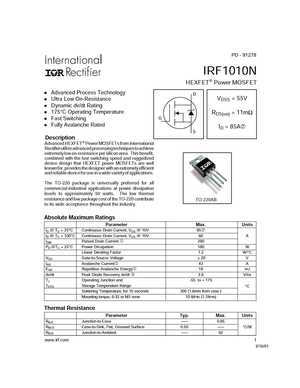

..2. Size:211K international rectifier irf1010n.pdf
PD — 91278IRF1010NHEXFET Power MOSFET Advanced Process TechnologyDVDSS = 55V Ultra Low On-Resistance Dynamic dv/dt Rating 175C Operating TemperatureRDS(on) = 11mG Fast Switching Fully Avalanche RatedID = 85A SDescriptionAdvanced HEXFET Power MOSFETs from InternationalRectifier utilize advanced processing techniques to achieveextremely low on-resistan
..3. Size:225K infineon irf1010npbf.pdf
PD — 94966AIRF1010NPbFHEXFET Power MOSFETl Advanced Process TechnologyDl Ultra Low On-ResistanceVDSS = 55Vl Dynamic dv/dt Ratingl 175C Operating TemperatureRDS(on) = 11ml Fast SwitchingGl Fully Avalanche RatedID = 85Al Lead-FreeSDescriptionAdvanced HEXFET Power MOSFETs from InternationalRectifier utilize advanced processing techniques toachieve
..4. Size:246K inchange semiconductor irf1010n.pdf
INCHANGE Semiconductorisc N-Channel MOSFET Transistor IRF1010N IIRF1010NFEATURESStatic drain-source on-resistance:RDS(on) 11mEnhancement modeFast Switching Speed100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationDESCRITIONreliable device for use in a wide variety of applicationsABSOLUTE MAXIMUM

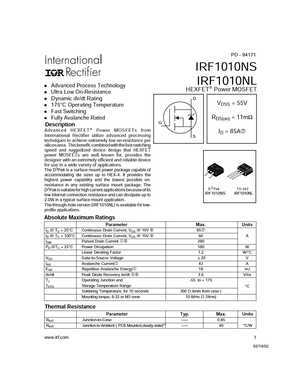

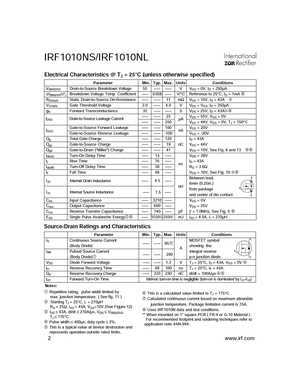

0.1. Size:146K international rectifier irf1010ns.pdf
PD — 94171IRF1010NSIRF1010NL Advanced Process TechnologyHEXFET Power MOSFET Ultra Low On-Resistance Dynamic dv/dt Rating DVDSS = 55V 175C Operating Temperature Fast SwitchingRDS(on) = 11m Fully Avalanche RatedGDescriptionAdvanced HEXFET Power MOSFETs fromID = 85A International Rectifier utilize advanced processingStechniques to achieve extremely low
0.2. Size:292K international rectifier irf1010nlpbf irf1010nspbf.pdf
PD — 95103IRF1010NSPbFIRF1010NLPbFl Advanced Process Technologyl Ultra Low On-ResistanceHEXFET Power MOSFETl Dynamic dv/dt RatingDl 175C Operating TemperatureVDSS = 55Vl Fast Switchingl Fully Avalanche RatedRDS(on) = 11ml Lead-FreeGDescriptionID = 85AAdvanced HEXFET Power MOSFETs fromSInternational Rectifier utilize advanced processingtechniques t
0.3. Size:292K infineon irf1010nspbf irf1010nlpbf.pdf
PD — 95103IRF1010NSPbFIRF1010NLPbFl Advanced Process Technologyl Ultra Low On-ResistanceHEXFET Power MOSFETl Dynamic dv/dt RatingDl 175C Operating TemperatureVDSS = 55Vl Fast Switchingl Fully Avalanche RatedRDS(on) = 11ml Lead-FreeGDescriptionID = 85AAdvanced HEXFET Power MOSFETs fromSInternational Rectifier utilize advanced processingtechniques t
0.4. Size:252K inchange semiconductor irf1010ns.pdf
INCHANGE Semiconductorisc N-Channel MOSFET Transistor IRF1010NSFEATURESWith TO-263( D2PAK ) packagingHigh speed switchingLow gate input resistanceStandard level gate driveEasy to use100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationAPPLICATIONSPower supplySwitching applicationsABSOLUTE MAXIMU
