IRFB4710 Datasheet PDF — International Rectifier
| Part Number | IRFB4710 | |
| Description | Power MOSFET(Vdss=100v/ Rds(on)max=0.014ohm/ Id=75A) | |
| Manufacturers | International Rectifier | |
| Logo | ||
|
There is a preview and IRFB4710 download ( pdf file ) link at the bottom of this page. Total 11 Pages |
|
Preview 1 page

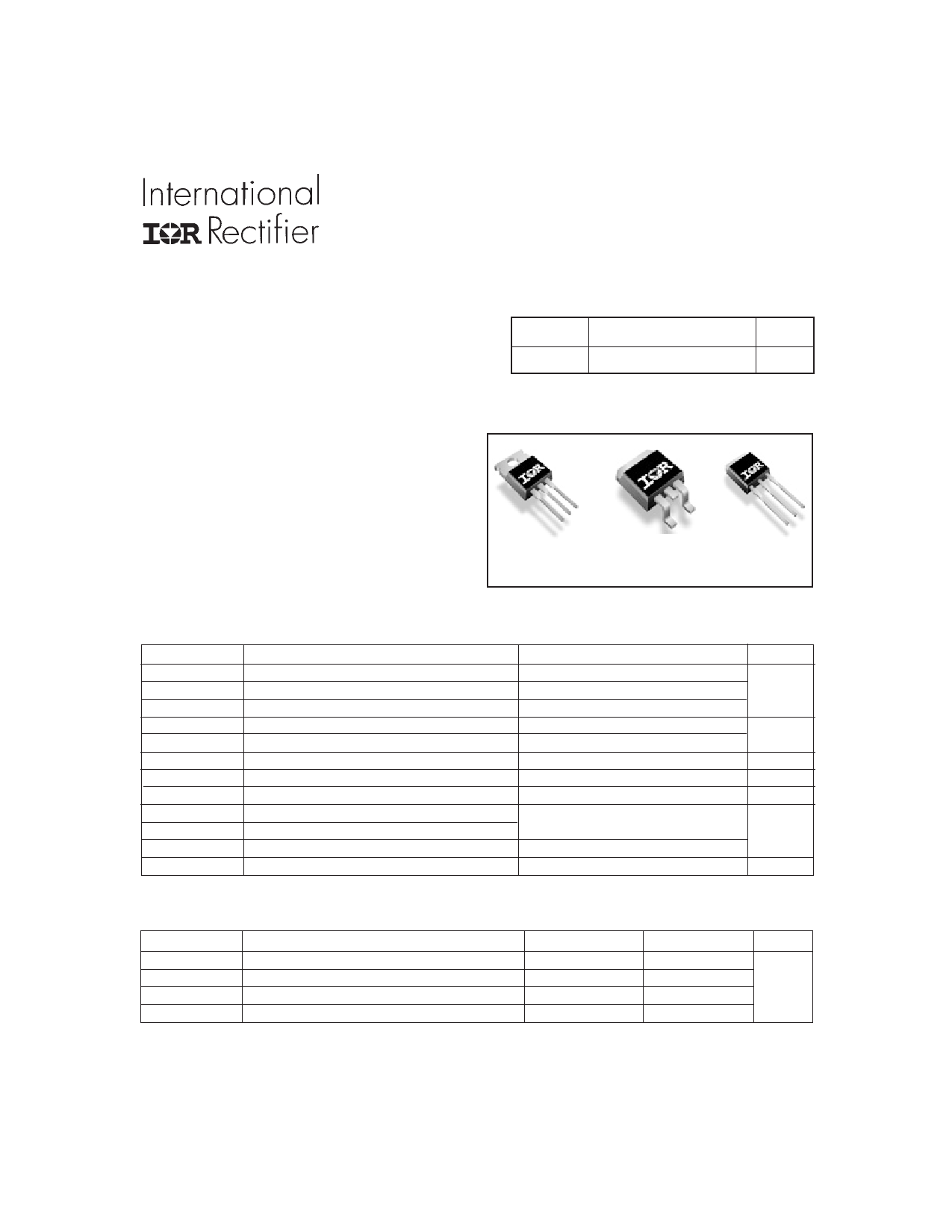

No Preview Available ! Applications l High frequency DC-DC converters l Motor Control l Uninterrutible Power Supplies PD- 94080 HEXFETPower MOSFET VDSS 100V RDS(on) max 0.014Ω ID 75A l Low Gate-to-Drain Charge to Reduce Switching Losses l Fully Characterized Capacitance Including Effective COSS to Simplify Design, (See App. Note AN1001) l Fully Characterized Avalanche Voltage and Current D2Pak IRFS4710 ID @ TC = 25°C ID @ TC = 100°C IDM PD @TA = 25°C PD @TC = 25°C VGS dv/dt TJ TSTG Parameter Continuous Drain Current, VGS @ 10V Continuous Drain Current, VGS @ 10V Pulsed Drain Current Power Dissipation Power Dissipation Peak Diode Recovery dv/dt Operating Junction and Mounting torqe, 6-32 or M3 screw Max. RθJC RθCS RθJA RθJA Parameter Case-to-Sink, Flat, Greased Surface Junction-to-Ambient Junction-to-Ambient Notes through are on page 11 www.irf.com |
|

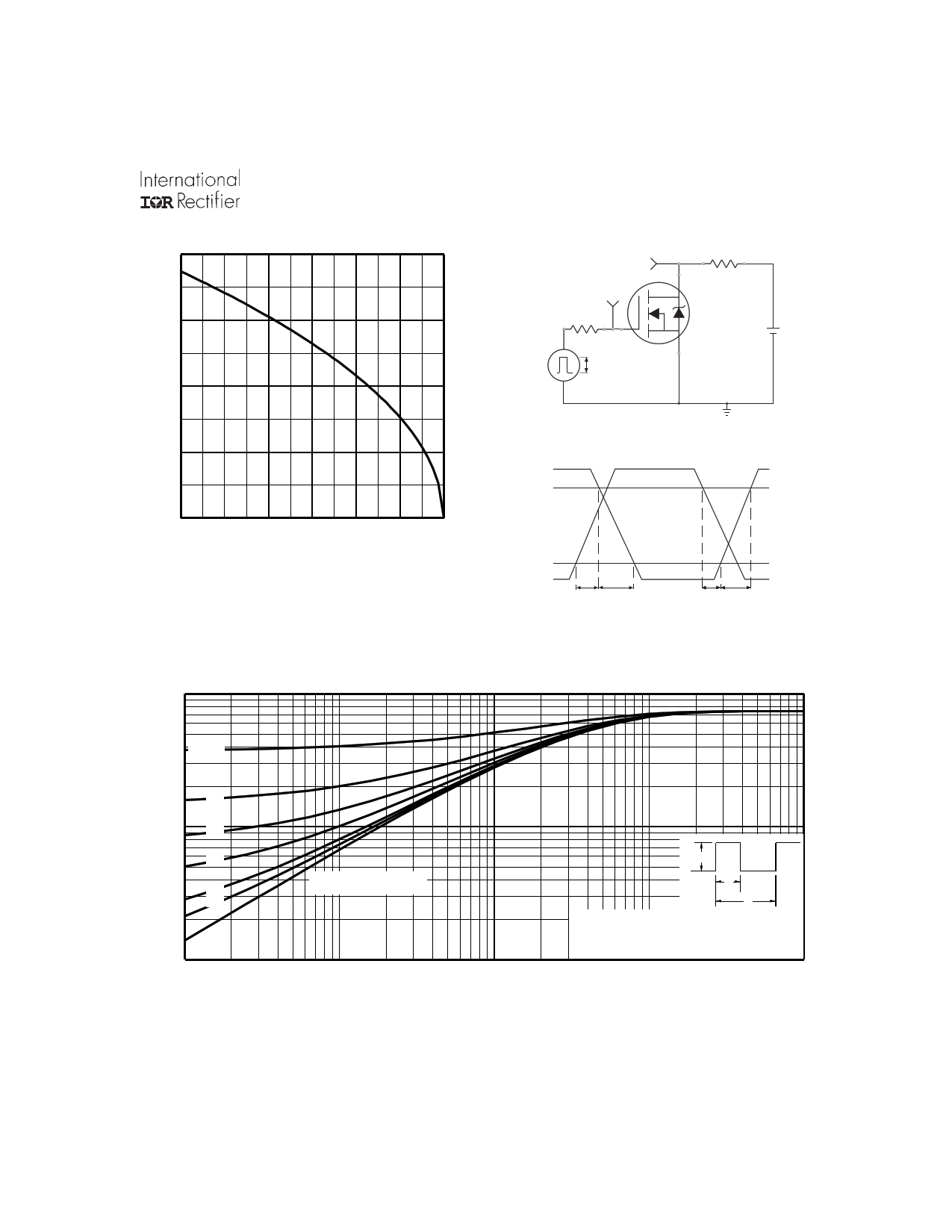

25 50 75 100 125 150 175 TC , Case Temperature ( °C) Fig 9. Maximum Drain Current Vs. Case Temperature VDS VGS RG RD D.U.T. Pulse Width ≤ 1 µs Duty Factor ≤ 0.1 % +-VDD Fig 10a. Switching Time Test Circuit VDS 90% VGS td(on) tr td(off) tf Fig 10b. Switching Time Waveforms 1 PDM SINGLE PULSE t1 t2 Notes: 1. Duty factor D = t1 / t 2 2. Peak T J = P DM x Z thJC + TC 0.0001 t1 , Rectangular Pulse Duration (sec) Fig 11. Maximum Effective Transient Thermal Impedance, Junction-to-Case www.irf.com Preview 5 Page |
IRFB/IRFS/IRFL4710|
