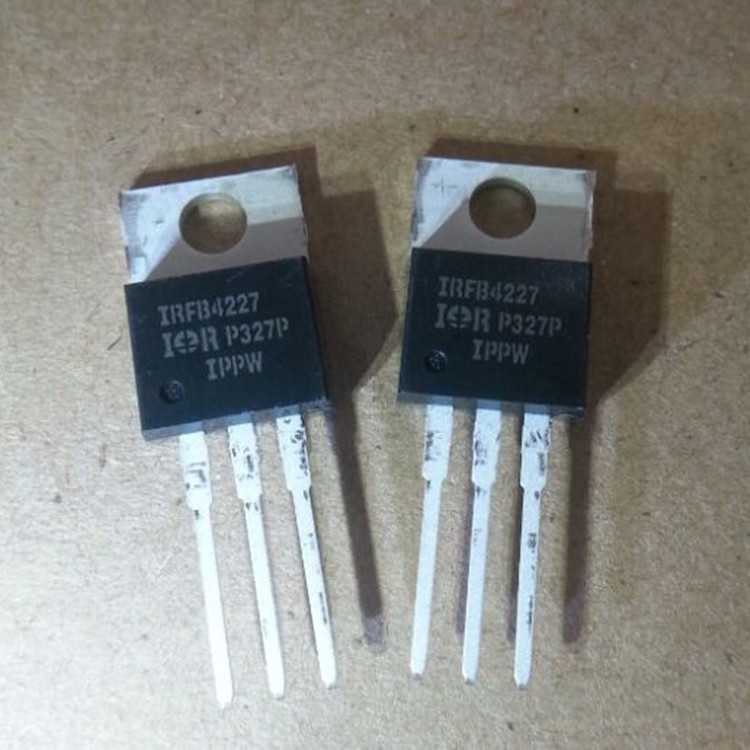

Наименование прибора: IRFB4227

Тип транзистора: MOSFET

Полярность: N

Максимальная рассеиваемая мощность (Pd): 330
W

Предельно допустимое напряжение сток-исток |Uds|: 200
V

Предельно допустимое напряжение затвор-исток |Ugs|: 30
V

Пороговое напряжение включения |Ugs(th)|: 5
V

Максимально допустимый постоянный ток стока |Id|: 65
A

Максимальная температура канала (Tj): 175
°C

Общий заряд затвора (Qg): 70
nC

Время нарастания (tr): 20
ns

Выходная емкость (Cd): 460
pf

Сопротивление сток-исток открытого транзистора (Rds): 0.024
Ohm

Тип корпуса:

IRFB4227
Datasheet (PDF)

 ..1. Size:284K  international rectifier irfb4227pbf.pdf

PD — 97035DIRFB4227PbFFeaturesKey Parametersl Advanced Process TechnologyVDS max 200 Vl Key Parameters Optimized for PDP Sustain, Energy Recovery and Pass Switch ApplicationsVDS (Avalanche) typ. 240 Vl Low EPULSE Rating to Reduce PowermRDS(ON) typ. @ 10V 19.7 Dissipation in PDP Sustain, Energy RecoveryIRP max @ TC= 100C 130 A and Pass Switch ApplicationsTJ max 17

 ..2. Size:284K  infineon irfb4227pbf.pdf

PD — 97035DIRFB4227PbFFeaturesKey Parametersl Advanced Process TechnologyVDS max 200 Vl Key Parameters Optimized for PDP Sustain, Energy Recovery and Pass Switch ApplicationsVDS (Avalanche) typ. 240 Vl Low EPULSE Rating to Reduce PowermRDS(ON) typ. @ 10V 19.7 Dissipation in PDP Sustain, Energy RecoveryIRP max @ TC= 100C 130 A and Pass Switch ApplicationsTJ max 17

 ..3. Size:244K  inchange semiconductor irfb4227.pdf

isc N-Channel MOSFET Transistor IRFB4227IIRFB4227FEATURESStatic drain-source on-resistance:RDS(on) 24mEnhancement modeFast Switching Speed100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationDESCRITION175 operating junction temperature and high repetitive peakcurrent capabilityABSOLUTE MAXIMUM

 7.1. Size:292K  international rectifier irfb4229pbf.pdf

PD — 97078AIRFB4229PbFFeaturesl Advanced Process TechnologyKey Parametersl Key Parameters Optimized for PDP Sustain,VDS min250 V Energy Recovery and Pass Switch ApplicationsVDS (Avalanche) typ.300 Vl Low EPULSE Rating to Reduce PowerRDS(ON) typ. @ 10V m38 Dissipation in PDP Sustain, Energy RecoveryIRP max @ TC= 100C and Pass Switch Applications 91 Al Low QG f

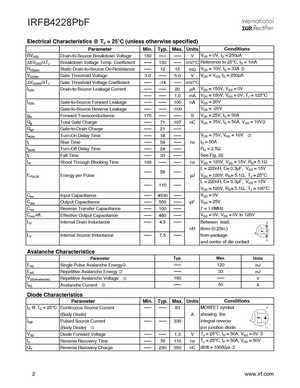

 7.2. Size:292K  international rectifier irfb4228pbf.pdf

PD — 97227AIRFB4228PbFPDP SWITCHFeaturesKey Parametersl Advanced Process TechnologyVDS min150 Vl Key Parameters Optimized for PDP Sustain,VDS (Avalanche) typ.180 V Energy Recovery and Pass Switch ApplicationsRDS(ON) typ. @ 10V ml Low EPULSE Rating to Reduce Power 12 Dissipation in PDP Sustain, Energy RecoveryIRP max @ TC= 100C170 A and Pass Switch Application

 7.3. Size:292K  infineon irfb4229pbf.pdf

PD — 97078AIRFB4229PbFFeaturesl Advanced Process TechnologyKey Parametersl Key Parameters Optimized for PDP Sustain,VDS min250 V Energy Recovery and Pass Switch ApplicationsVDS (Avalanche) typ.300 Vl Low EPULSE Rating to Reduce PowerRDS(ON) typ. @ 10V m38 Dissipation in PDP Sustain, Energy RecoveryIRP max @ TC= 100C and Pass Switch Applications 91 Al Low QG f

 7.4. Size:292K  infineon irfb4228pbf.pdf

PD — 97227AIRFB4228PbFPDP SWITCHFeaturesKey Parametersl Advanced Process TechnologyVDS min150 Vl Key Parameters Optimized for PDP Sustain,VDS (Avalanche) typ.180 V Energy Recovery and Pass Switch ApplicationsRDS(ON) typ. @ 10V ml Low EPULSE Rating to Reduce Power 12 Dissipation in PDP Sustain, Energy RecoveryIRP max @ TC= 100C170 A and Pass Switch Application

 7.5. Size:245K  inchange semiconductor irfb4228.pdf

isc N-Channel MOSFET Transistor IRFB4228IIRFB4228FEATURESStatic drain-source on-resistance:RDS(on) 15mEnhancement modeFast Switching Speed100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationDESCRITION175 operating junction temperature and high repetitive peakcurrent capabilityABSOLUTE MAXIMUM

 7.6. Size:245K  inchange semiconductor irfb4229.pdf

isc N-Channel MOSFET Transistor IRFB4229IIRFB4229FEATURESStatic drain-source on-resistance:RDS(on) 46mEnhancement modeFast Switching Speed100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationDESCRITION175 operating junction temperature and high repetitive peakcurrent capabilityABSOLUTE MAXIMUM

Другие MOSFET… IRFB4110
, IRFB4110G
, IRFB4110Q
, IRFB4115
, IRFB4115G
, IRFB4127
, IRFB41N15D
, IRFB4212
, IRF1404
, IRFB4229
, IRFB4233
, IRFB42N20D
, IRFB4310
, IRFB4310G
, IRFB4310Z
, IRFB4310ZG
, IRFB4321
.

IRFB4227 Datasheet (PDF)

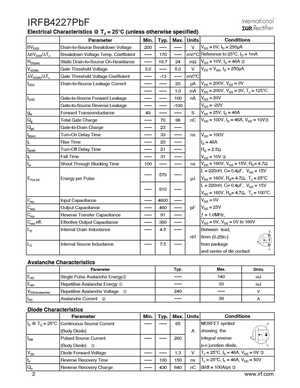

 ..1. Size:284K  international rectifier irfb4227pbf.pdf
