DMMT5401 Datasheet (PDF)
0.1. dmmt5401.pdf Size:111K _diodes
DMMT5401 MATCHED PNP SMALL SIGNAL SURFACE MOUNT TRANSISTOR Features A Epitaxial Planar Die Construction SOT-26 Complementary NPN Type Available (DMMT5551) E1 E2 C2Dim Min Max Typ Ideal for Low Power Amplification and Switching A 0.35 0.50 0.38 Intrinsically Matched PNP Pair (Note 1) B CB 1.50 1.70 1.60 2% Matched Tolerance, hFE, VCE(SAT), VBE(SAT)
0.2. dmmt5401.pdf Size:1336K _kexin
SMD Type TransistorsPNP TransistorsDMMT5401 (KMMT5401)( )SOT-23-6 Unit:mm+0.10.4 -0.1 Features5 46 Epitaxial Planar Die Construction Complementary NPN Type Available (DMMT5551) Ideal for Medium Power Amplification and Switching Intrinsically Matched PNP Pair (Note 1)2 31 2% Matched Tolerance, hFE, VCE(SAT), VBE(SAT)+0.020.15 -0.02+0.0
9.1. dmmt5551 dmmt5551s.pdf Size:114K _diodes
DMMT5551/DMMT5551S MATCHED NPN SMALL SIGNAL SURFACE MOUNT TRANSISTOR Features A Epitaxial Planar Die Construction SOT-26 Complementary PNP Type Available (DMMT5401) Dim Min Max Typ Ideal for Low Power Amplification and Switching A 0.35 0.50 0.38 Intrinsically Matched NPN Pair (Note 1) B CB 1.50 1.70 1.60 2% Matched Tolerance, hFE, VCE(SAT), VBE(SAT)
9.2. dmmt5551.pdf Size:1286K _kexin
SMD Type TransistorsNPN TransistorsDMMT5551 (KMMT5551)( )SOT-23-6 Unit:mm0.4+0.1 Features -0.1 Epitaxial Planar Die Construction6 5 4 Complementary PNP Type Available (DMMT5401) Ideal for Low Power Amplification and Switching Intrinsically Matched NPN Pair (Note 1) 2% Matched Tolerance, hFE, VCE(SAT), VBE(SAT)2 31 Lead Free/RoHS Compliant

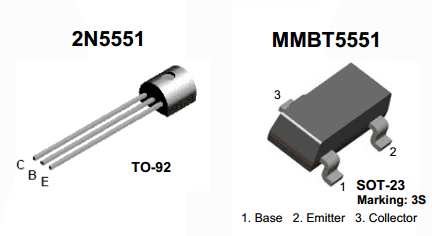

Модификации (версии) транзистора
| Тип | PC | UCB | UCE | UEB | IC | TJ | hFE | fT | Cob | NF | hfe | Корпус | Примечание |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2N5551 | 0,625 | 180 | 160 | 6 | 0,6 | 150 | 20-250 | 100-300 | 6 | 8 | 50-200 | TO-92 | |
| 2N5551C | 0,625 | 180 | 160 | 6 | 0,6 | 150 | 30-250 | 100-300 | 6 | 8 | 50-200 | TO-92 | |
| 2N5551CN | 0,4 | 180 | 160 | 6 | 0,6 | 150 | 30-250 | 150 | 3 | — | — | TO-92N | |
| 2N5551CSM | 0,35 | 180 | 160 | 6 | 0,6 | 150 | 30-250 | 100-300 | 6 | 8 | 50-200 | LCC1 ٭ | |
| 2N5551DCSM | 0,35 | — | 160 | — | 0,6 | — | 80 | 100 | — | — | — | LCC2 ٭ | Тот же MO-041BB |
| 2N5551G | 0,625 | 180 | 160 | 6 | 0,6 | 150 | 80-400 | 100-300 | 6 | 8 | — | TO-92 | Группы по hFE: A/B/C |
| 2N5551G | 0,5 | 180 | 160 | 6 | 0,6 | 150 | 80-400 | 100-300 | 6 | 8 | — | SOT-89 | Группы по hFE: A/B/C |
| 2N5551HR | 0,36 | 180 | 160 | 6 | 0,6 | 200 | 20-250 | — | 6 | — | 1-50 | TO-18 | |
| 2N5551HR | 0,58 | 180 | 160 | 6 | 0,5 | 200 | 20-250 | — | 6 | — | 1-50 | LCC3, UB ٭ | |
| 2N5551K | 0,625 | 180 | 160 | 6 | 0,6 | 150 | 50-300 | 100-300 | 6 | — | — | TO-92 | Группы по hFE: A/B/C |
| 2N5551N | 0,4 | 180 | 160 | 6 | 0,6 | 150 | 30-250 | 150 | 3 | — | — | TO-92N | |
| 2N5551S | 0,35 | 180 | 160 | 6 | 0,6 | 150 | 30-250 | 100-300 | 6 | 8 | 50-200 | SOT-23 | Маркировка: ZF |
| 2N5551SC | 0,35 | 180 | 160 | 6 | 0,6 | 150 | 150-250 | 100-300 | — | — | — | SOT-23(1) | Маркировка: ZFC |
| BTN5551K3 | 0,9 | 180 | 160 | 6 | 0,6 | 150 | ≥ 50 | ≥ 100 | 6 | — | — | TO-92L | |
| H2N5551 | 0,625 | 180 | 160 | 6 | 0,6 | 150 | 50-400 | 100-300 | 6 | — | — | TO-92 | Группы по hFE: A/N/C |
| H5551 | 0,625 | 180 | 160 | 6 | 0,6 | 150 | 30-280 | 100-300 | — | — | — | TO-92 | |
| 2N5551SQ | 0,5 | 180 | 160 | 6 | 0,6 | 150 | 30-250 | 100-300 | 6 | — | — | SOT-89 | Маркировка: BG1 |
| MMBT5551 | 0,35 | 180 | 160 | 6 | 0,6 | 150 | 30-250 | 100-300 | 6 | 8 | 50-200 | SOT-23 | Маркировка: 3S |
٭ — корпуса SMD типа LCC 1/2/3 и UB – для тяжелых условий эксплуатации, требующих высокой степени надежности.
Примечание: параметр hFE – статический (по постоянному току) коэффициент усиления. hfe – коэффициент усиления по переменному току в режиме усиления малого сигнала (на определенной частоте).
